Description

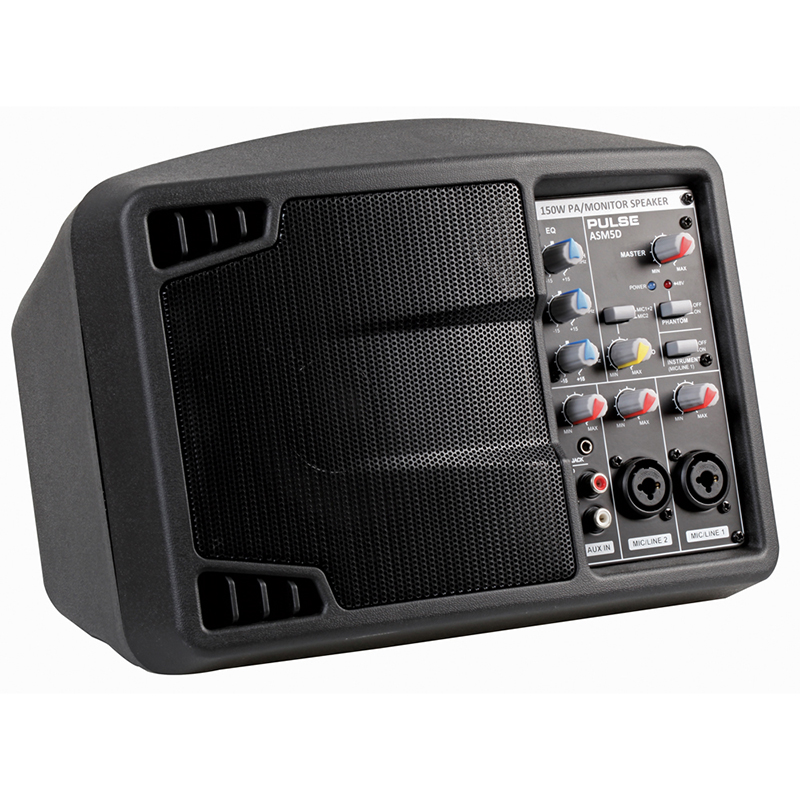

The ASM5D is a high quality and versatile portable “on the spot” sound reinforcement solution for all kinds of live events, conferences, meetings and education. It also configures as a very useful personal monitor system for practice sessions and all kinds of solo/band performances, including keyboard players, guitarists, drummers and a useful piece of additional equipment for live DJs.
- Ultra compact 150W PA/Monitor speaker system
- 5″ Premium full range driver with neodymium magnet
- Class D amplifier technology
- Ultra low noise, 3 channel mixer
- 3 Band EQ
- +48V Phantom power (switchable)
- Ch.1 Instrument ready (switchable)
- Echo function (switchable from Mic 1&2 to Mic 2 only)
- Dedicated stereo input channel for keyboards, CD, MP3, etc
- Main in & Link Thru connectors for using multiple units together

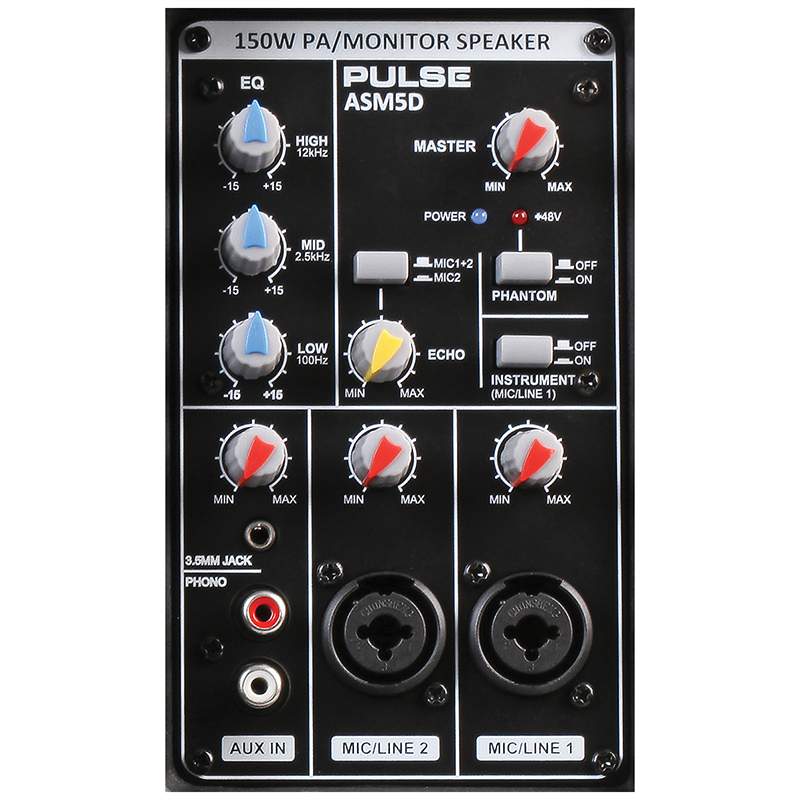

- Front Panel Connectors: 2x XLR/Jack Combo sockets, Phono, 3.5mm Jack

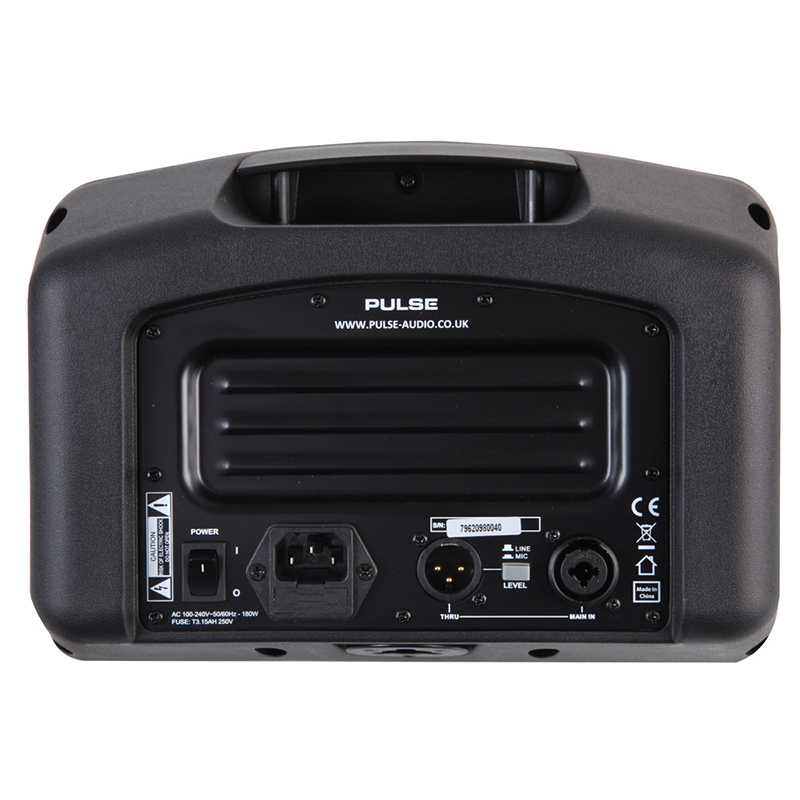

- Rear Panel Connectors: XLR/Jack Combo socket (In), XLR (Thru), IEC
- Output Power: 125W RMS / 150W Peak
- Frequency Response: 80Hz – 14kHz (-10dB), 100Hz – 10kHz (-3dB)
- SPL: 114dB @ 1m
- Power Consumption: 180W
- Power Supply: AC 100-240V ~ 50/60Hz
- Dimensions (WxHxD): 285x200x200mm
- Weight: 2.75kg
